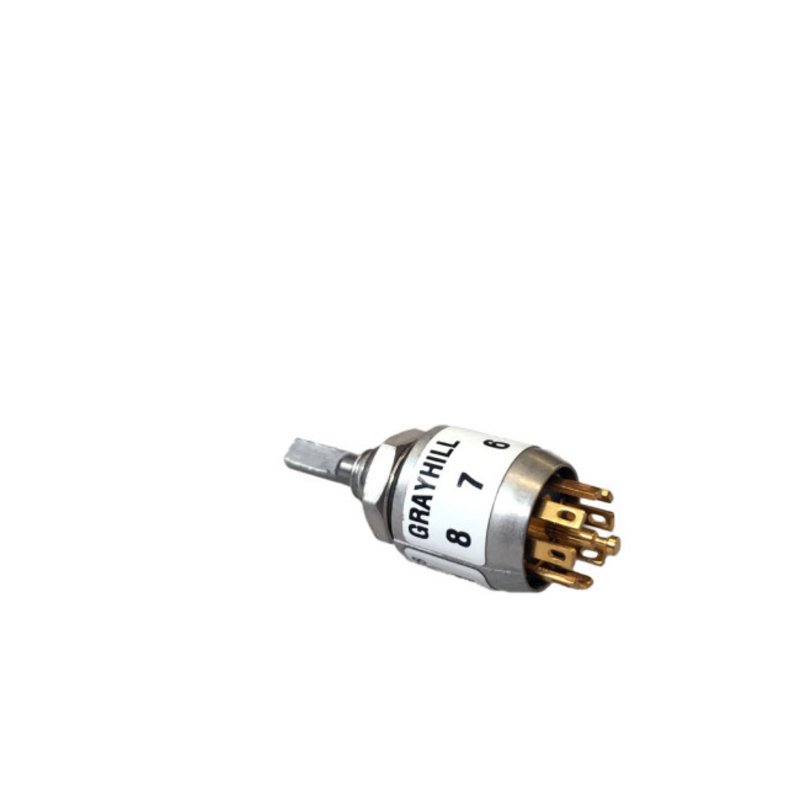

Rotary Switch 30°
Rotary switch 30°
- number of poles: 1
- number of positions: 12
- nominal current: 200mA
- angle, index: 30°
- diameter, spindle: 3.18 mm
- type of connection: soldered connection
- diameter, outside: 12.7 mm
- thread: 1/4 28 UNF - 2A
- IP protection: IP67
- length, spindle: 9.53mm
- material, contact: gold over silber
- contact voltage, AC: 115V
- contact voltage, DC: 30V
- depth, behind panel: 12.9 mm
- resistance, isolation: 10000MR
- resistance, contact-: 100mR
